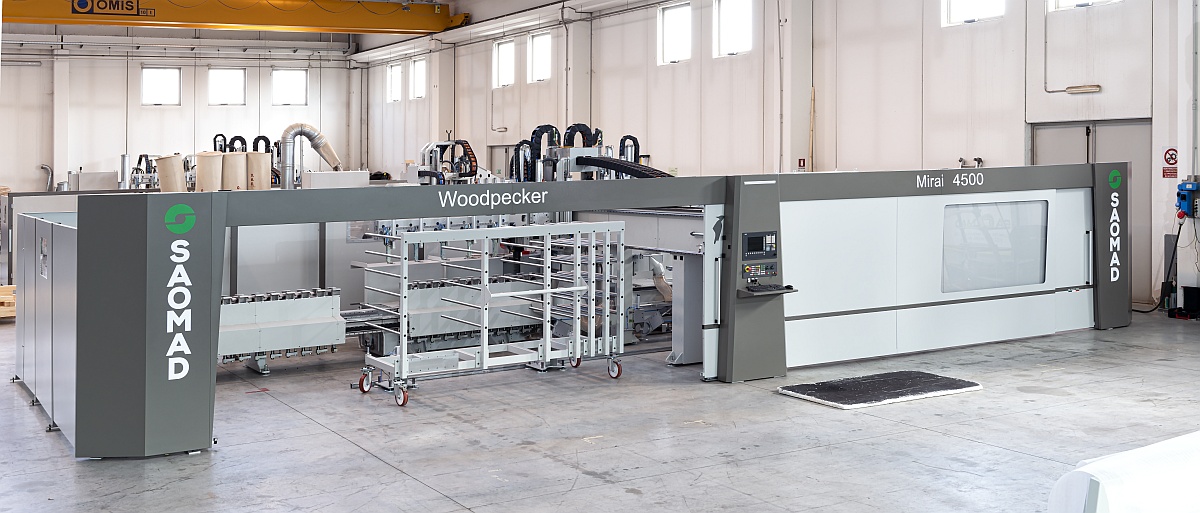

2026 SAOMAD WOODPECKER MIRAI 4500

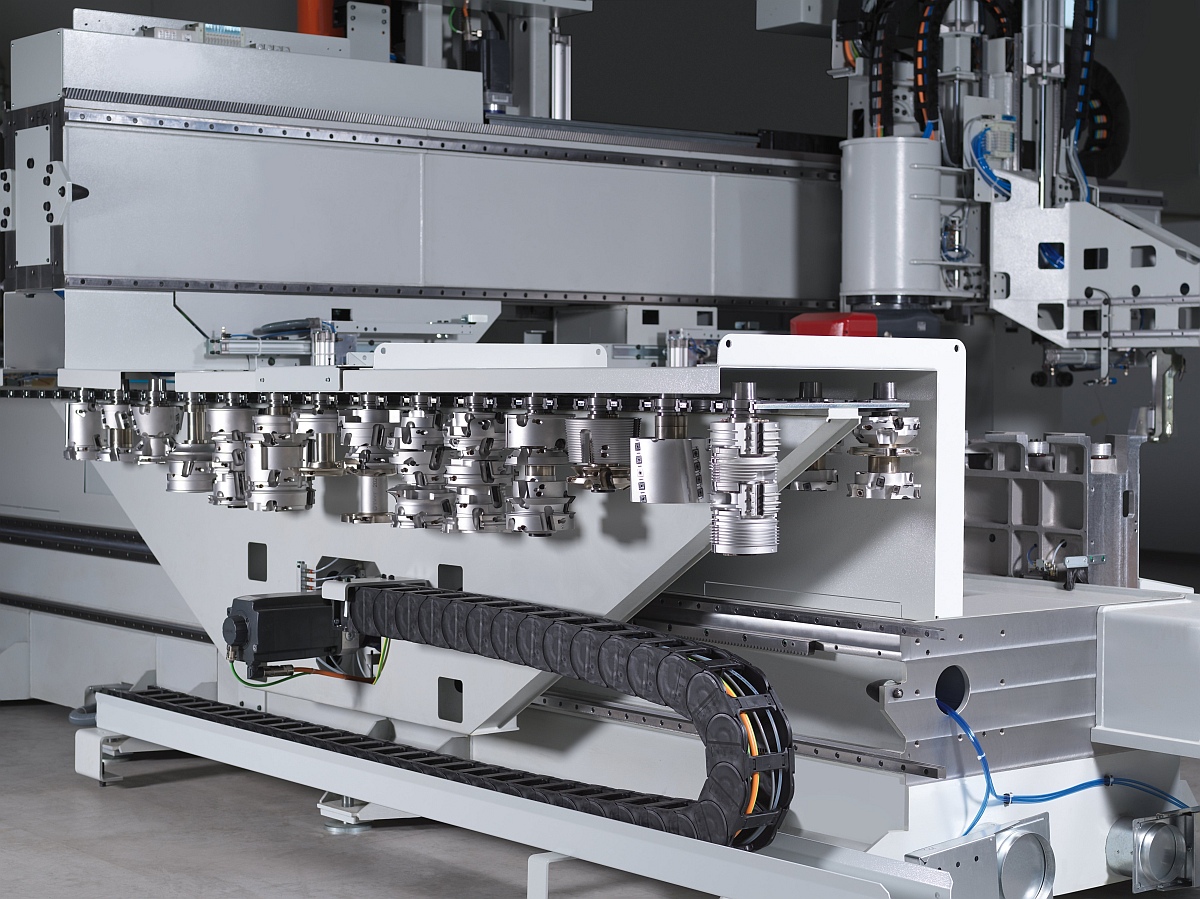

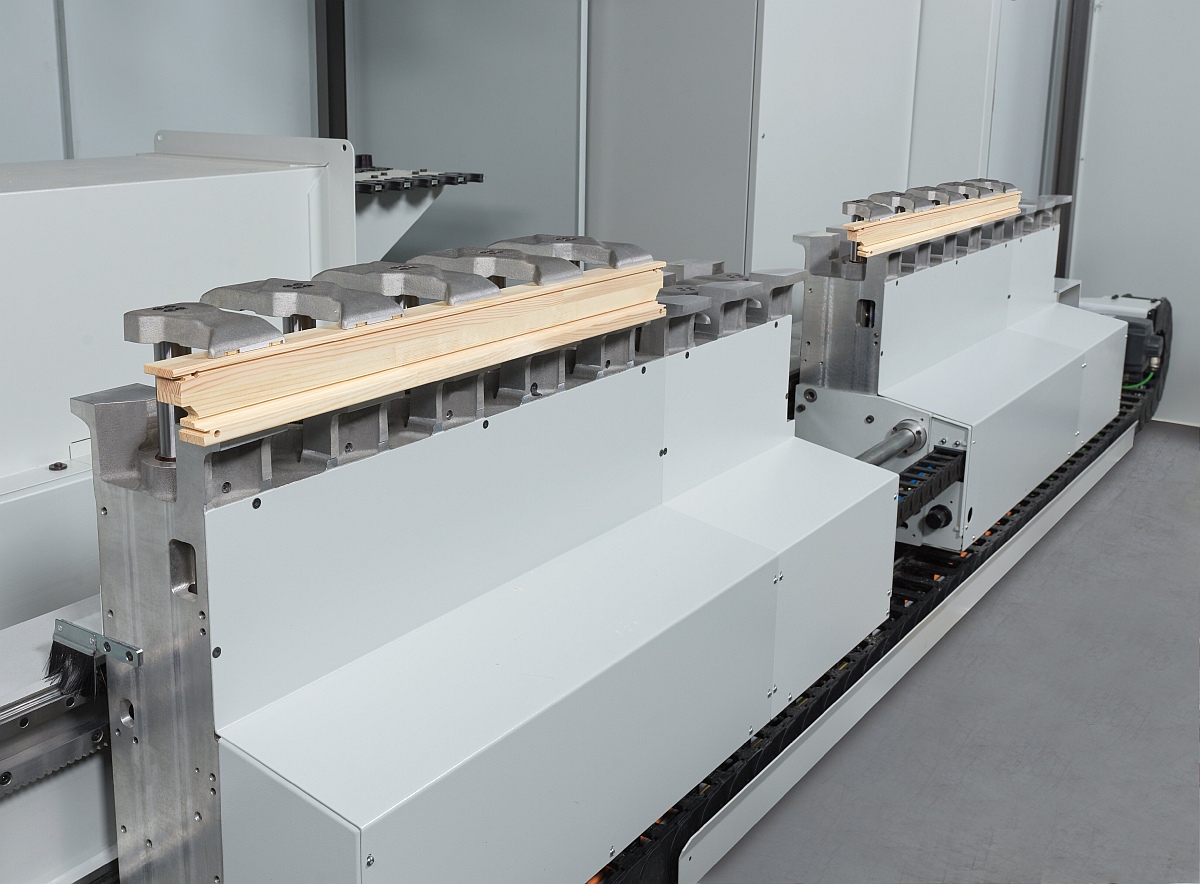

Working height: 15–160 mm Working width: 30–240 mm Working length: 250–4,500 mm X-axis movement speed: 100 m/min Y-axis movement speed: 75 m/min Z-axis travel speed: 40 m/min Main electro-spindle power: 19 kW (S1) / 22 kW (S6) Power according to 5-axis spindle motor: 15 kW (S1) / 18 kW (S6) Vertical spindle motor power M1: 4 kW Tool holder: HSK 63E Maximum speed of main spindle: 15,000 rpm Maximum speed according to spindles: 24,000 rpm Maximum weight of the spindle tool: 15 kg Maximum tool weight by spindle: 10 kg Tooling warehouse: 64 positions Automatic loading trolley: 60 pieces Automatic unloading trolley: 60 pieces Number of clamps: 22 Electrically welded and normalized steel structure. Two independent motors, one of which has 5 axes. Possibility to work simultaneously on two pieces up to 2,200 mm each or a single piece up to 4,500 mm. Patent-pending automatic loading and unloading system with independent carts. Three-dimensional machining on all six faces of the part. Tool magazine accessible from both drives. Processing system designed to reduce handling times and increase productivity.
